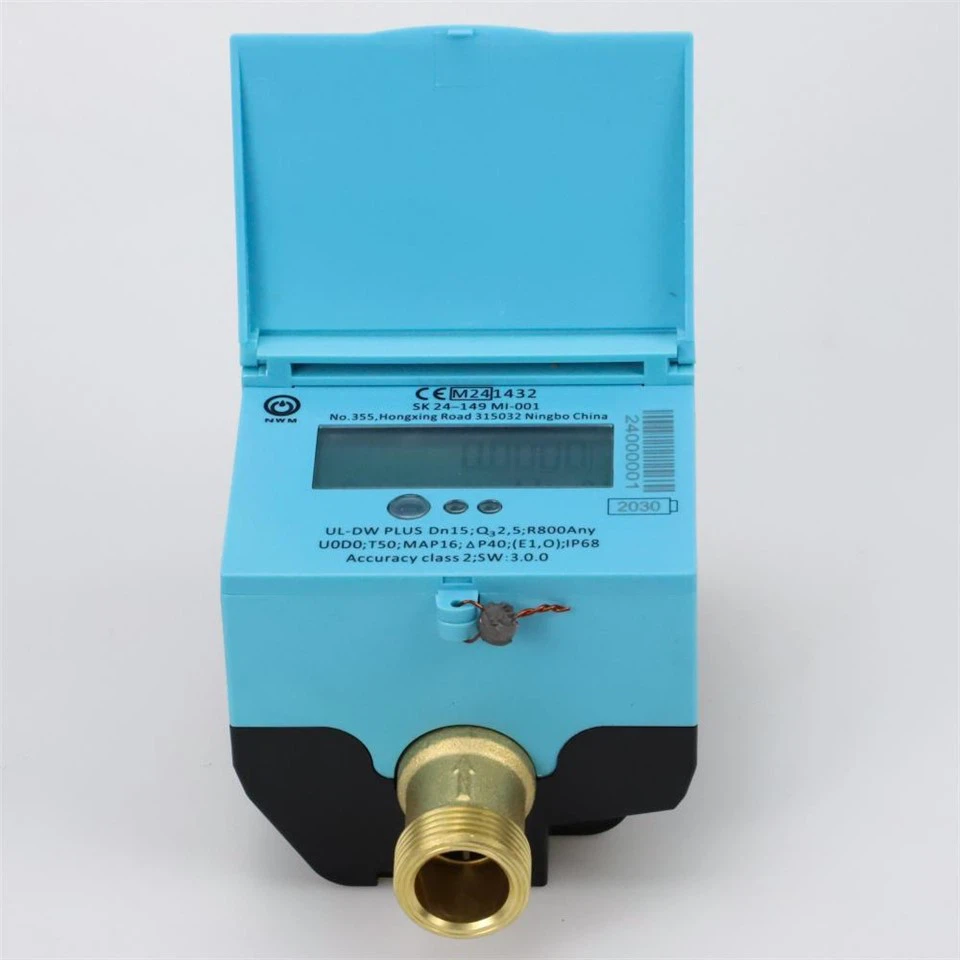

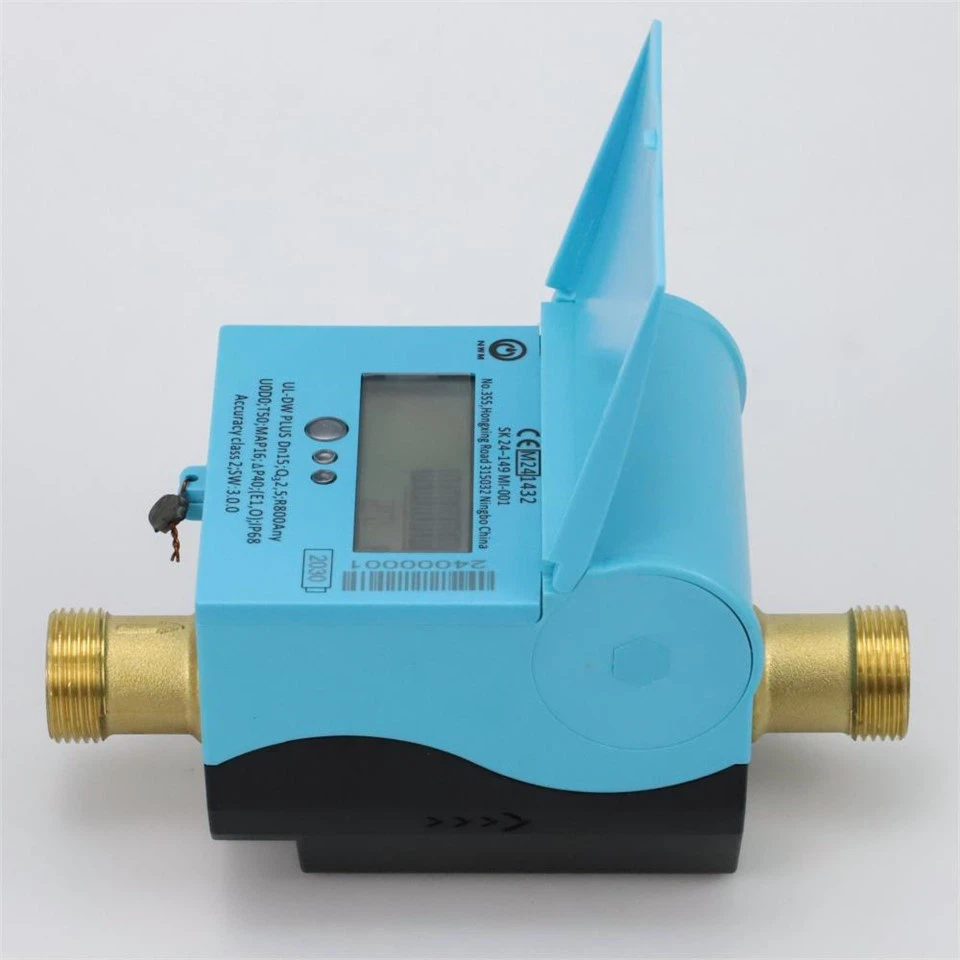

Residential Ultrasonic Water Meter



Brand Name	NWM
Model	UL-DW-PLUS
Sort	Smart
Type	Ultrasonic
Body Material	Brass
Ratio	R250/500/800
Size	Dn15 / 20 / 25 / 32 / 40
Customized Support	OEM, ODM
Communication Port	NB-IoT / LoRa / LoRaWAN / M-Bus / RS485 /Optical(infrared ray) / Pulse
Installation Mode	Any Position
Temperature Class	T30 (cold water)/T50
Pressure Rating	MAP16
Certificate	MID 2014/32/EU (In processing)/WRAS
Place of Origin	Ningbo, China
Warranty	2 years
Display Interface	Instantaneous Flow, Accumulate Flow, Wireless Signal Working Status, Reverse Flow Detect...



NWM UL-DW intelligent water meter is the static ultrasonic water meter covered from Dn15 to Dn40 for domestic and commercial applications. The ultrasonic sensor water flow meter is robust and designed to ensure reliable and long-lasting precision and support full smart IoT solutions.





● Non-moving parts permitting the most reliable and longer term life, lowest pressure loss;

● High accuracy, unaffected by sand, suspended solids or air pockets;

● Ultrasonic flow meter for water can detect both forward and reverse flow;

● Long battery life---10 years battery life,longer endurance;

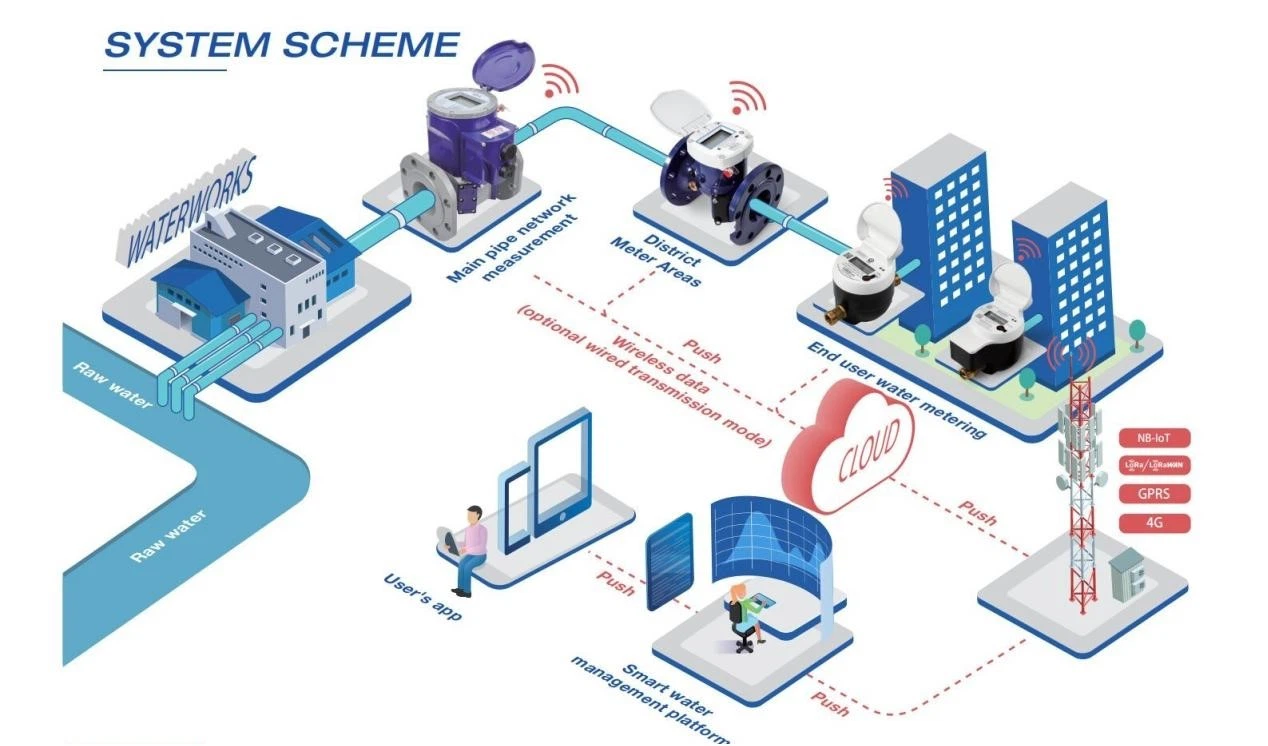

● AMR ready for wire or wireless communication;

● IP 68 environment protection class.





a.From Q, inclusive up to but excluding Q, is ± 2% for T30 (From Q, inclusive up to but excluding Q, is ± 3% for T50);
b.From Q, inclusive up to and including Q is ± 5%;

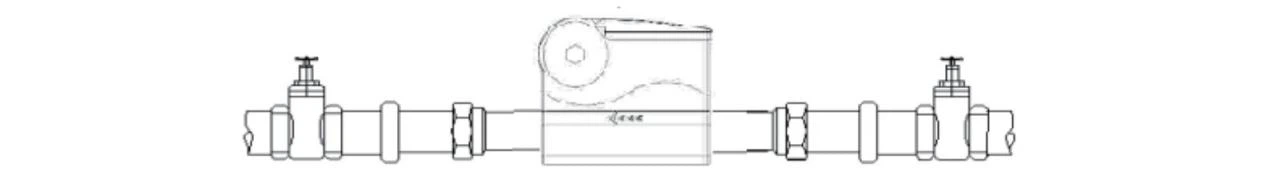

Suggest to install the UL-DW-PLUS intelligent water meter at U5 D3 (Straight pipe before the water meter at 5D, after the water meter at 3D);

Water flow should be in the same direction with the arrow on water meter main case; if installed horizontally (or vertically), the ultrasonic flow meter for water surface should face right upwards (or right ahead), and it cannot have any deflection from water meter outlet axis;

The installation location of the static water meter should be protected from sunlight, freezing, pollution and water drown for easy removing and cannot be installed near the inlet and outlet of the pump;

Flush the pipe work thoroughly to clear all impurities before installing the ultrasonic flow meter for water;

The intelligent water meter and pipeline should be connected by pipe fitting, sealing gaskets and connecting nuts (the connections).

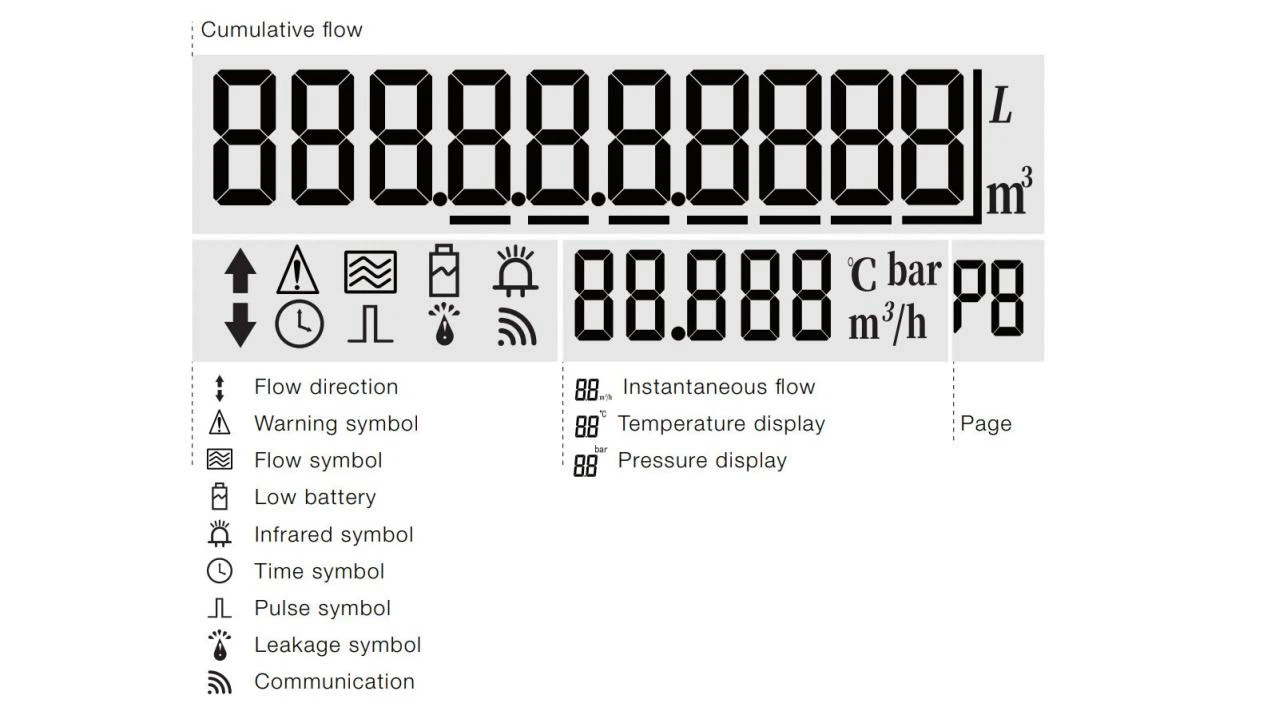

Display Menu
