Volumetric Piston Water Meter

Your Professional Volumetric Piston Water Meter Supplier

Ningbo Water Meter (Group) Co., Ltd. is one of the world's largest manufacturers specializing in water meter production and services. NWM offers a comprehensive range of products, including water meter terminals ranging from 8mm to 500mm for mechanical water meters, AMR-enabled mechanical meters, fully digital water meters, and multifunctional water monitoring terminals. Additionally, NWM provides a Smart O&M Platform that integrates advanced water management information systems such as pipeline GIS, DMA zoning analysis, SCADA leak monitoring, and pipeline inspection. These solutions are widely applied in domestic, commercial, industrial, and irrigation contexts.

Strong Competence
Ningbo Water Meter (Group) Co., Ltd. is a leading enterprise in the field of water measurement, employing over 1,400 professionals and operating a primary manufacturing facility spanning 90,000 square meters.

Advanced Technology
NWM leverages cutting-edge German technology and utilizes fully automated European-imported equipment to deliver comprehensive solutions tailored for municipal, commercial, and agricultural customers.

Diverse Product Portfolio
With a portfolio exceeding 1,000 distinct products, NWM not only manufactures mechanical water meters ranging from 8mm to 500mm but also provides AMR/AMI solutions and smart water management services to a global clientele.

Advanced Equipment
Our company has more than 80 fully automatic and semi-automatic water meter calibration production lines. We also have highly information-based production workshops, SMT welding lines, robotic assembly lines, and fully automatic packaging lines.

Volumetric Liquid-filled Type Piston Displacement Brass B...
Brand Name: NWM
Model: PD-LFC (A)
Type: Piston / Volumetric Liquid Filled Type
Body Material: Brass
read more
Volumetric Liquid-filled Type Piston Displacement Plastic...
Brand Name: NWM
Model: PD-LFC (S)
Type: Piston / Volumetric Liquid Filled Type
Body Material: Plastic
read more
Volumetric Dry Type Brass Body Water Meter
Brand Name: NWM
Model: PD-SDC (E4)
Type: Piston / Volumetric Dry Type
Body Material: Brass
read more
Volumetric Dry Type Plastic Body Water Meter
Brand Name: NWM
Model: PD-SDC (E8)
Type: Piston / Volumetric Dry Type
Body Material: Plastic
read more
AWWA NSF Volumetric Dry Type Brass Body Water Meter
Brand Name: NWM
Model: NPPD
Type: Piston / Volumetric Dry Type
Body Material: Lead Free Brass
read more

Parameter

Model	NPPD	PD-SDC (E8)
Type	Piston / Volumetric Dry Type	Piston / Volumetric Dry Type
Body Material	Lead Free Brass	Plastic
Standard	AWWA C700	R160/R400
Size	5/8*3/4″ - 2″	Dn15
Customized Support	OEM, ODM	OEM, ODM
Communication Port	Reed Switch (pulse output)	Reed Switch/LoRa/LoRaWAN /NB-IoT
Installation Mode	Horizontal Installation	Horizontal Installation
Temperature Class	Deg.F122	T30 (cold water)/T50
Pressure Rating	150PSI	MAP16
Certificate	NSF61	CE/MID 2014/32/EU
Place of Origin	Ningbo, China	Ningbo, China
Warranty	2 years	2 years

Types of Volumetric Piston Water Meter

The volumetric piston water meters produced by our company mainly include the following types

Volumetric Dry Type Brass Body Water Meter

For easy reading, the rotary indicator offers 8 rollers and 1 pointer, with pulse output set at 10 liters per pulse for a reed switch water meter. The piston, being the primary water-contact component, offers superior reliability.

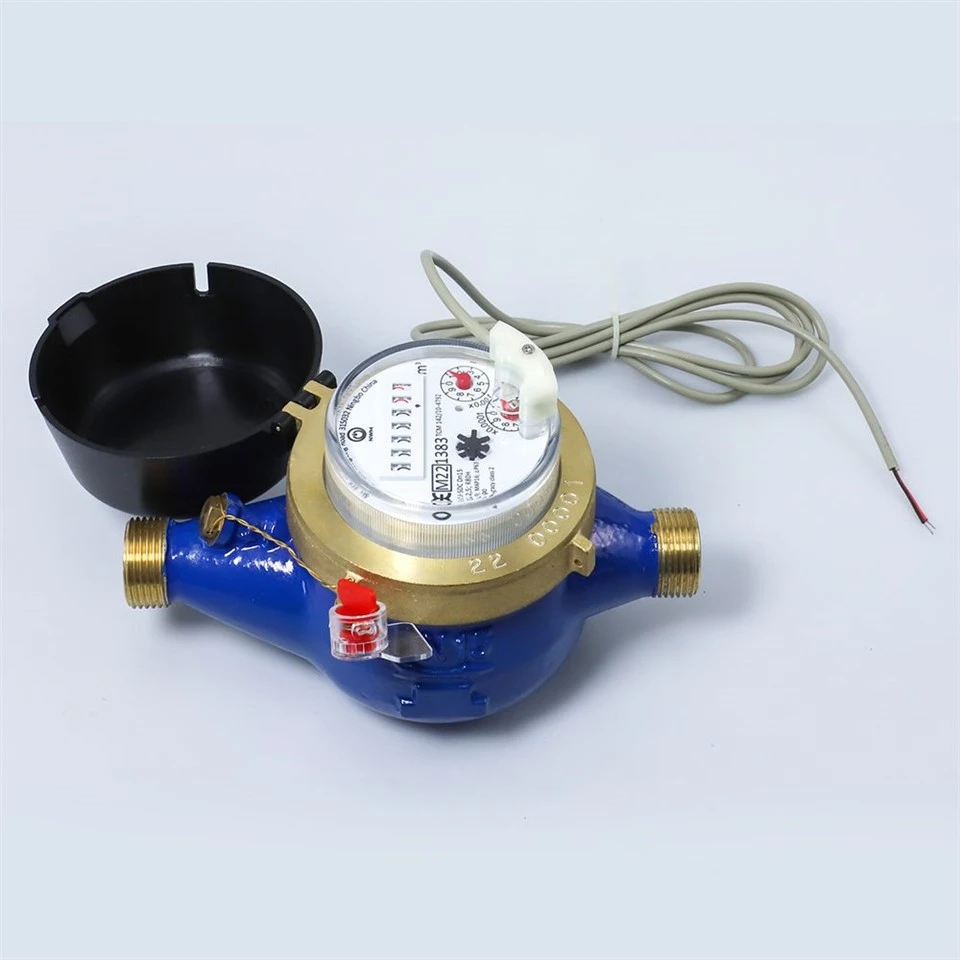

Multi-Jet Dry Type Cold Water Meter with Rotary Register

Volumetric Dry Type Plastic Body Water Meter

All the materials of this plastic water flow meter selected by resistance to corrosion. The ROTARY indicator register for the most comfortable reading position is of 8 Rollers and 1 Pointer, with pulse output pre-equipped at 10 liters/pulse.

Multi-Jet Dry Type R160 Cold Water Meter

Advantages of Volumetric Piston Water Meter

01/

Precision Measurement
These meters provide high accuracy, ensuring that users are billed correctly for the actual volume of water consumed.

02/

Durability and Reliability
Constructed from robust materials, volumetric piston water meters can withstand harsh conditions, making them suitable for outdoor and industrial environments.

03/

Versatility
Volumetric piston water meters can measure not only water but also various liquids, making them adaptable to different applications.

04/

Low Maintenance Requirements
With fewer moving parts compared to other types of meters, volumetric piston water meters require less frequent maintenance and can function effectively for extended periods.

Applications of Volumetric Piston Water Meter

Residential Water Metering

Homeowners benefit from accurate billing based on actual water consumption, promoting responsible water usage.

Agricultural Irrigation

Farmers utilize these meters to monitor water usage efficiently, optimizing irrigation practices and conserving resources.

Industrial Processes

In manufacturing, volumetric piston water meters facilitate precise measurement of water or liquid inputs, enhancing quality control and process efficiency.

Municipal Water Supply

Local governments deploy these meters in water distribution systems to ensure accurate measurement and accountability.

Volumetric Liquid-filled Type Water Meter With Smart Wireless Module

Installation Instructions for Volumetric Piston Water Meters

Protecting the Meter
Start by ensuring all plastic water meters are covered post installation. This protects the meter from direct sunlight, which can be done using a housing or meter box.

Sizing
Make sure the water meter is correctly sized according to the pipe size or the flow rate.

Flushing Pipework
Flush all pipework to remove debris or sand, ensuring a clean pipeline.

Meter Orientation

Install piston meters either horizontally or vertically.

Avoiding Pressure
Ensure no pressure is applied to the meter during installation from misaligned pipes or excessive vibration, which can lead to failure.

Fitting Installation
Avoid over-tightening fittings and excessive use of sealing materials like sealing tape, which can cause leaks.

Thread Treatment
Only use thread tape or PTFE tape, ideally with tailpieces.

Soldering Precautions
Avoid soldering near the meter, especially where brass fittings are involved, to prevent damage from heat.

Water Type
Ensure the meter installed for cold water is not used in a hot water pipeline.

Appropriate Usage
Use the meter only for clean potable water to avoid damage and inaccuracies.

Handling Care

Handle the meter carefully as it is a precision measuring instrument. Do not drop it or break the meter seal.

Thread Fittings
Avoid using tapered thread fittings; Use of tailpieces is preferable.

Additional Protection
Install a strainer before the water meter to protect it from sand or foreign debris.

Ordering Process

Step 1

Let me know your requirements or application.

Step 2

We quote according to your requirements or our suggestions.

Step 3

Customer confirms the samples and places deposit for formal order.

Step 4

We arrange the prodution.

Packaging and Shipping

Packaging

Standard cartons box packing,or customized packing as your request.

Shipping

For the weight is under 100kg, we suggest shipment by FedEx, DHL or UPS.

For the weight is between 100-200kg, we suggest shipment by air.

For the weight is above 200kg, we suggest shipment by sea.

Our Certifications

NWM has more than 20 European MID/OIML approved Certificates like CE, more than 10 Water Sanitary Certifications like ACS, WRAS, NSF, and more than Metrologic approval from all over the world.

productcate-1-1

FAQ

Q: What is a volumetric piston water meter?

A: A volumetric piston water meter is a type of water - measuring device that uses pistons to measure the volume of water passing through it. It operates by trapping and displacing known volumes of water, and counting the number of these displacements to determine the total volume of water consumed.

Q: How does a volumetric piston water meter work?

A: As water enters the meter, it forces pistons to move within chambers. Each piston displacement represents a fixed volume of water. The movement of the pistons is transferred through a mechanical linkage to a register or digital display, which accumulates and shows the total volume of water that has flowed through the meter.

Q: What are the main components of a volumetric piston water meter?

A: Its main components include pistons, measuring chambers, a drive mechanism (such as gears), a register or display unit, and a housing that encloses all these parts and connects to the water pipeline.

Q: How often should a volumetric piston water meter be calibrated?

A: It is recommended to calibrate volumetric piston water meters every 5 - 10 years, depending on factors such as water quality, usage frequency, and the criticality of accurate measurement. In some cases, more frequent calibration may be required if the meter is used in harsh conditions.

Q: What is the typical lifespan of a volumetric piston water meter?

A: With proper installation, regular maintenance, and suitable operating conditions, a volumetric piston water meter can last 10 - 20 years or even longer.

Q: How do you maintain a volumetric piston water meter?

A: Regularly check for leaks around the meter connections. Clean or replace the strainer if installed. Periodically inspect the meter for any signs of wear or damage to the internal components. If the meter is not in use for an extended period, it should be drained to prevent corrosion.

As one of the most professional volumetric piston water meter manufacturers and suppliers in China, we're featured by quality products and good price. Please rest assured to buy bulk cheap volumetric piston water meter made in China here from our factory. Contact us for customized service.
